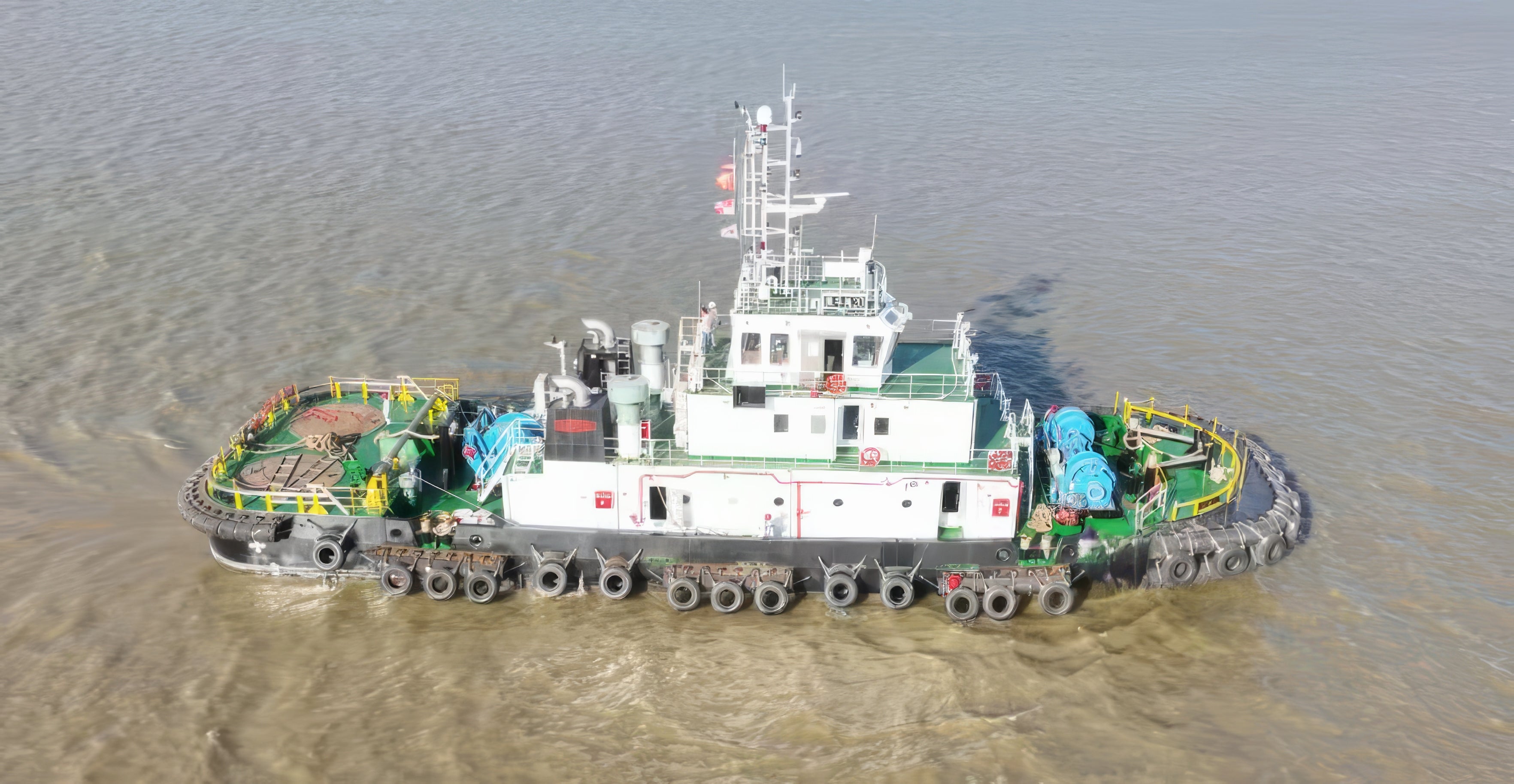

LOA/BM/DEPTH: 35.2/10/4.40 DRAFT: 3.30M M/E NIIGATA 6L26HLX/ 2*1471KW/750RPM GENERATOR: COMMINS 6CT.3-GM115/ 2 *115KW /1500RPM PROPELLER: NIIGATA 2 X ZP-31 SPEED: 12KNOTS BOLLARD PULL:51.8T

single bottom(part in double bottom) and single deck, twin screw harbour tugboat GRT/NRT 432/129 Loa/L.B.P/beam /depth molded  36.8//32.30/10.0/4.6m Draft  3.6m(design) Complements  13p Bollard pull  not less than 52 tons in ahead and 46 tons in astern Endurance: not less than 1000nm. M/E  N11GATA 6L26HLX(Japan made) ,continuous output: 1471KW（2000PS）750rpm× 2sets M/E Fuel oil consumption: not large than 200g/kw.h   Propulsion unit :type: N11GATA ,ZP-31 Main generator type UC274E capacity: 100KW, 1500rpm x2sets    Service Spd  abt13.5kn

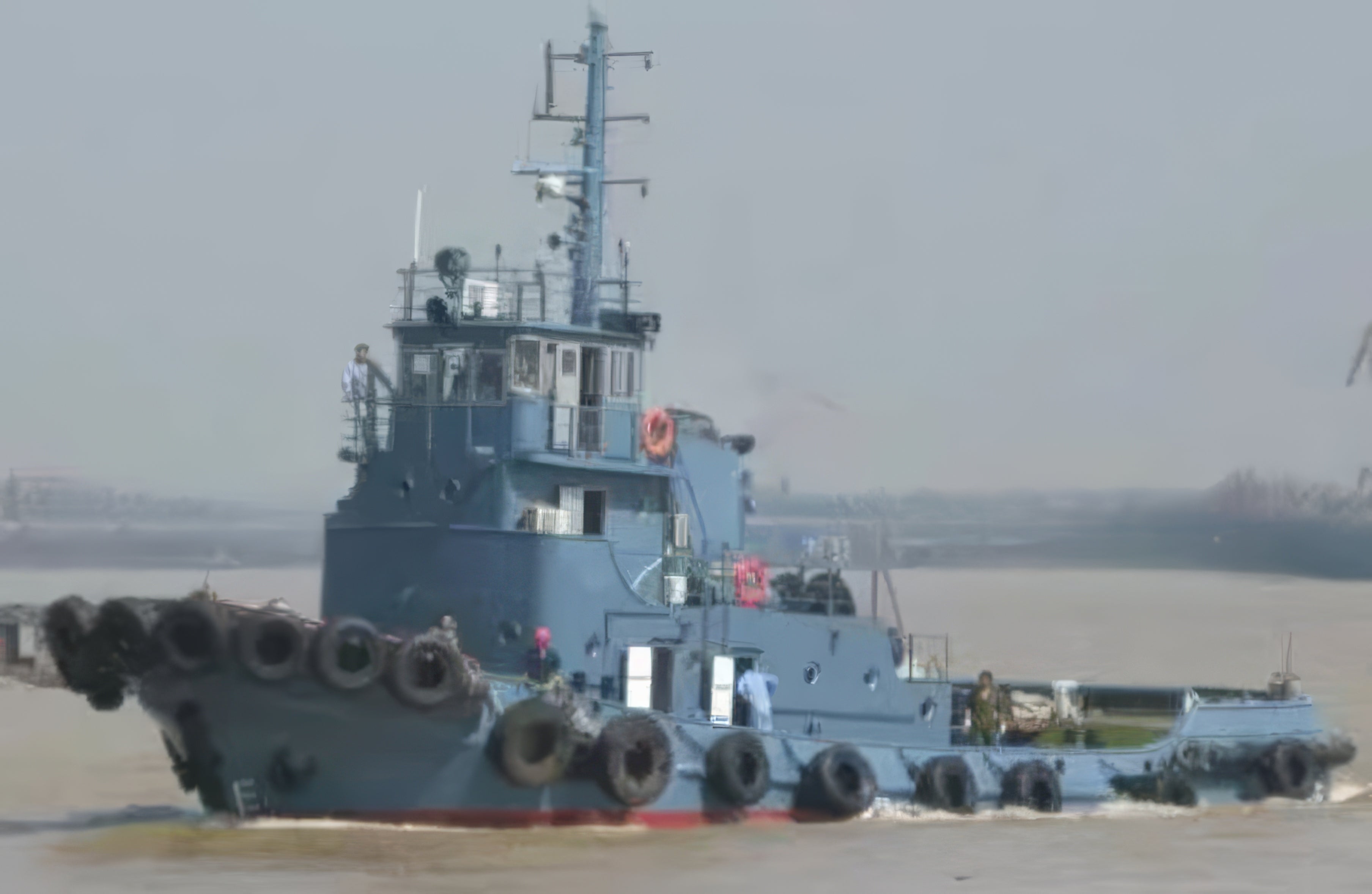

Length over all, m. 28 Width, m. 8,5 Board height, m. 4,25 Draught max., m. 3,7 Gross tonnage, r.t. 240 Net tonnage, r.t. 70 Deadweight, t. 250 Displacement, t. 550 Dock / Light weight, t. 300 Engine model Wartsila F38A 1 x 2100 h.p. Propulsion type Controllable pitch in Kort steering nozzle Fuel capacity, t. 105 Fuel consumption under way, t. 3,5 Water stores, t. 100 Endurance, days 45 Speed, kn 13 Crew 7 Diesel generators, kW 2 x 75 kVa 380V Towing winch 20 / 39 t. Bollard pull, t. 39

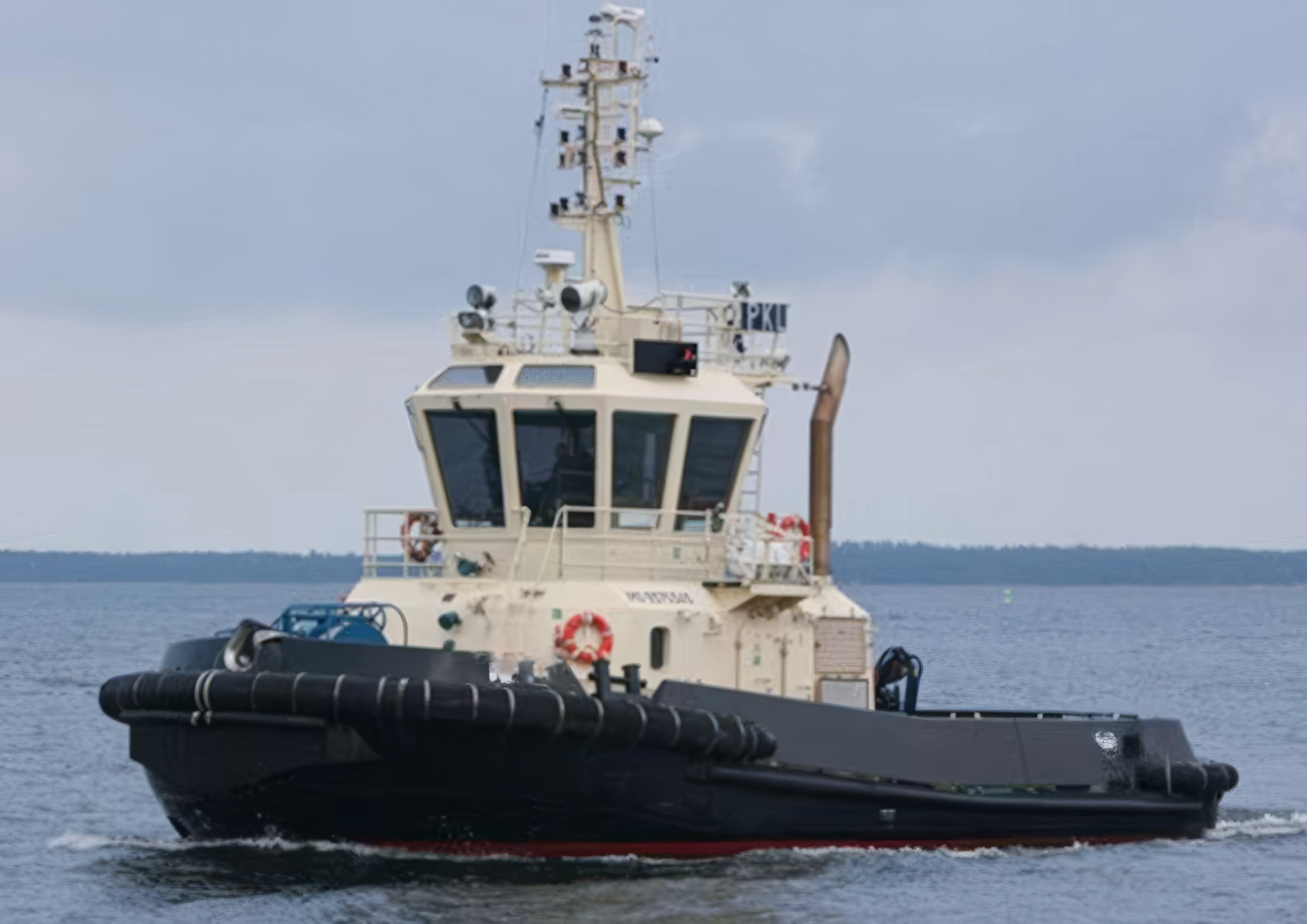

LOA：32m Breadth：8m Depth：3.5m Draft: 2.5m Main engine：Z6170ZLZ-8    450KW*2/900KW/1224HORSEPOWER
