ProductCategory:FISHINGVESSEL

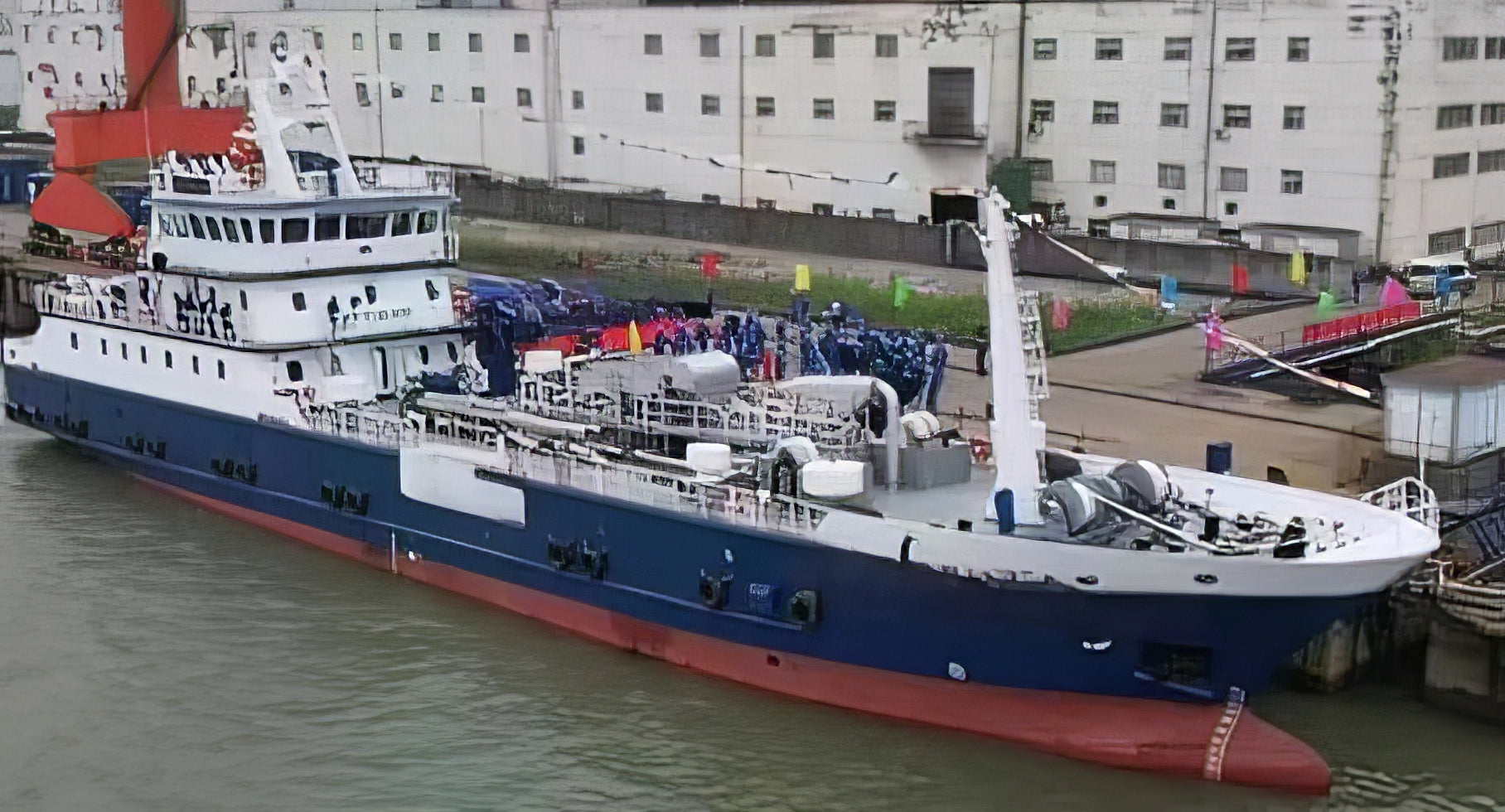

Total length: 56.50m Width: 13.00mMold depth: 6.00m Design draft: 4.00m Fixed capacity:26P Speed: 11.5Kn Approximately 600 cubic meters of live water tank

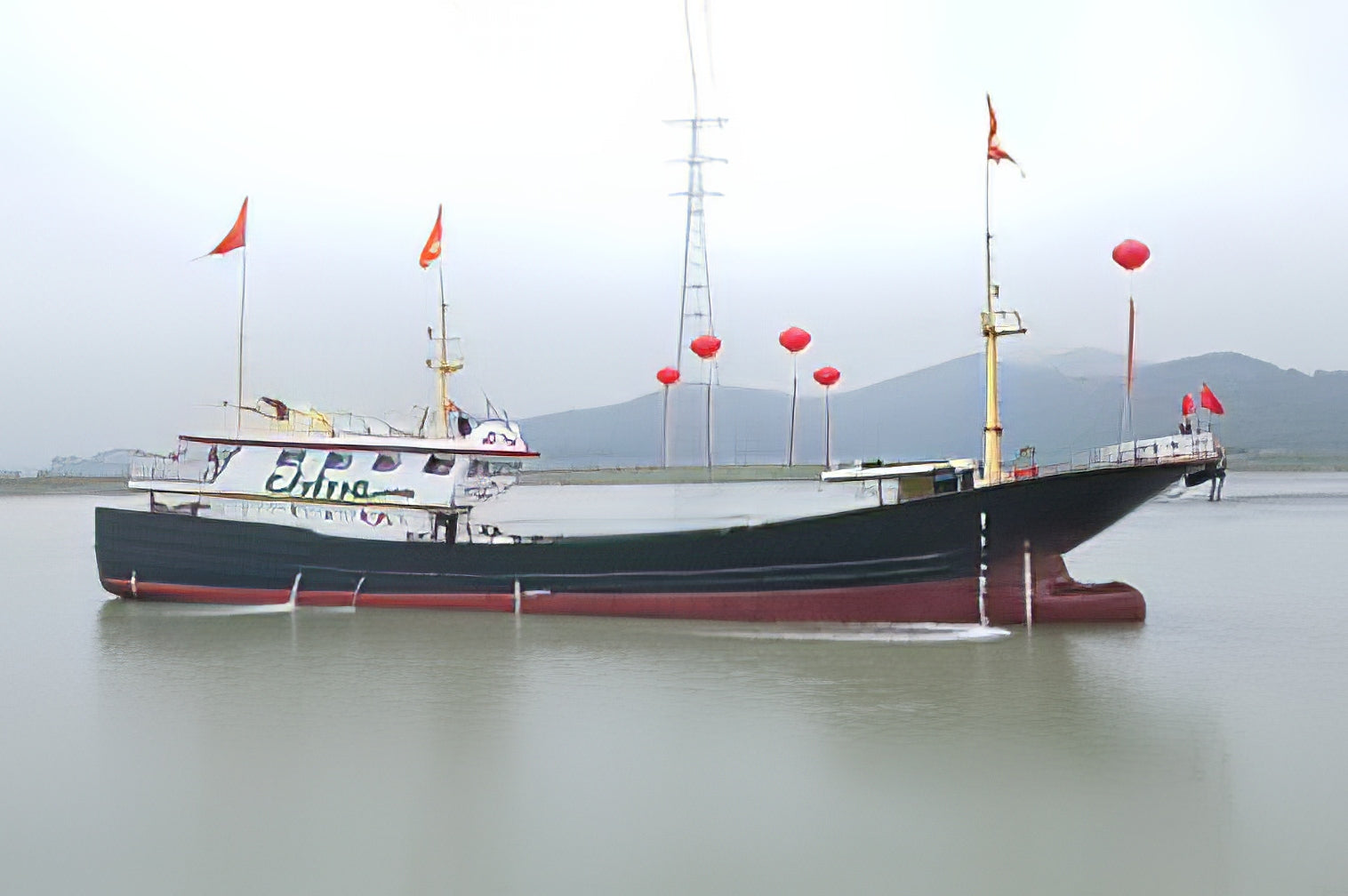

Total length: 52.50 m Ship length: 46.30m, molded Width: 7.20m molded Depth: 3.90m, Design draft: 3.20 m Total tonnage: 328. Navigation area: Offshore speed: 9.5 knots, Host model: Ningdong 6230, number of units: 1. rated power: 258kw; Gearbox model: Dafa J1260. speed ratio 4.5:1; Auxiliary engine model: WP2.3CD40E200, number of units: 2. Rated power: 36kw. Generator model: SB-HW4-30, number of units: 2, rated power: 30kw

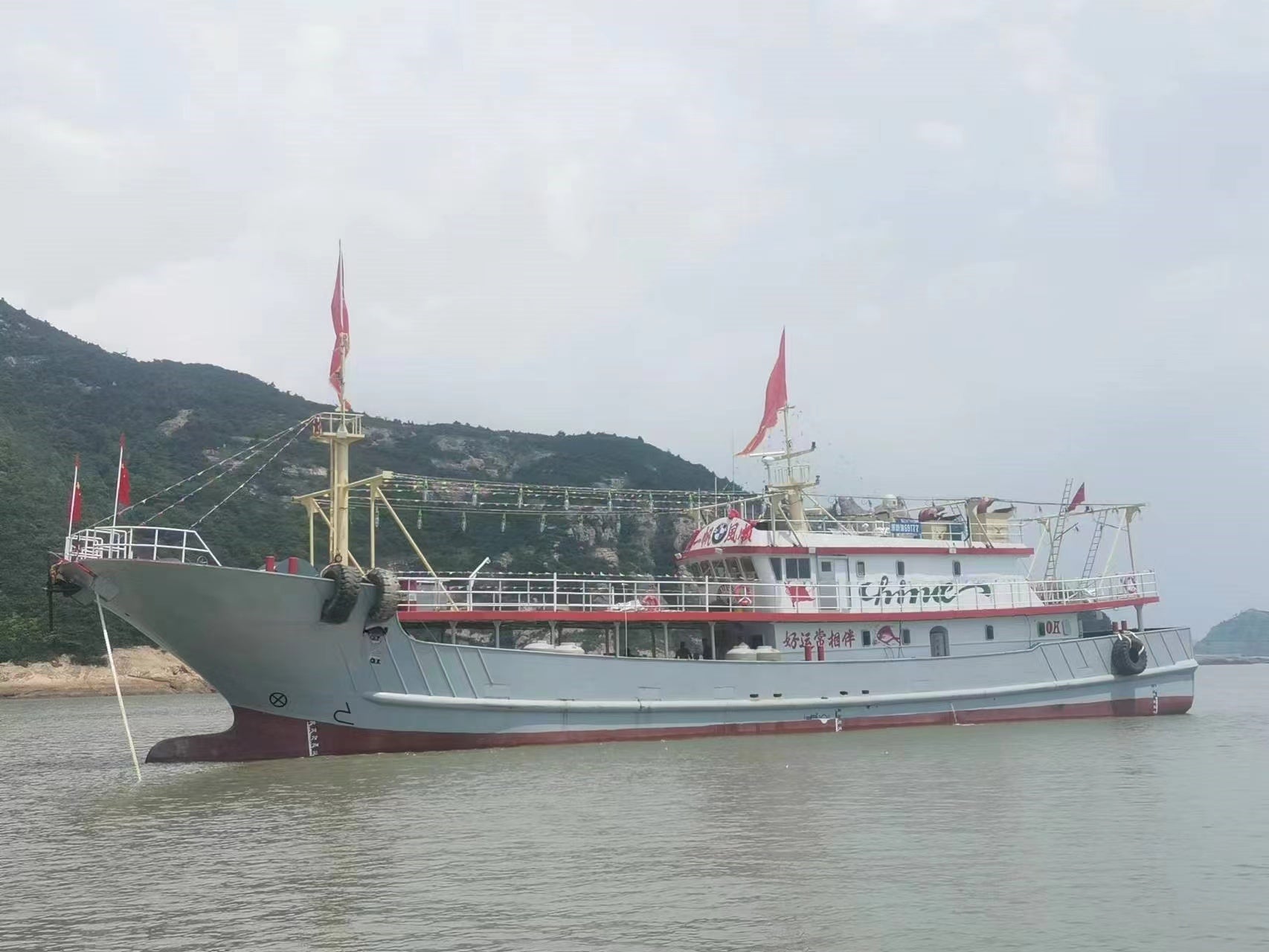

Total length: 45.00 m             ship length:38.32 m, Molded width: 6.60 m             Molded depth: 3.40 m, Design draft: 2.70 m               Gross tonnage: 298, Navigation area: Offshore      speed: 9.5 knots, Host model: Yuchai YC6CL350L-C23, quantity: 1, rated power: 258kw; Gearbox model: Developed J1260, speed ratio 4.5:1; Auxiliary engine model: YC6MJ410L-C24, quantity: 1, rated power: 300kw. Generator model: SB-HW4.D-250, quantity: 1, rated power: 250kw Remarks: fishing nets and fishing boxes are not included. 2.Optional refrigerated compartment

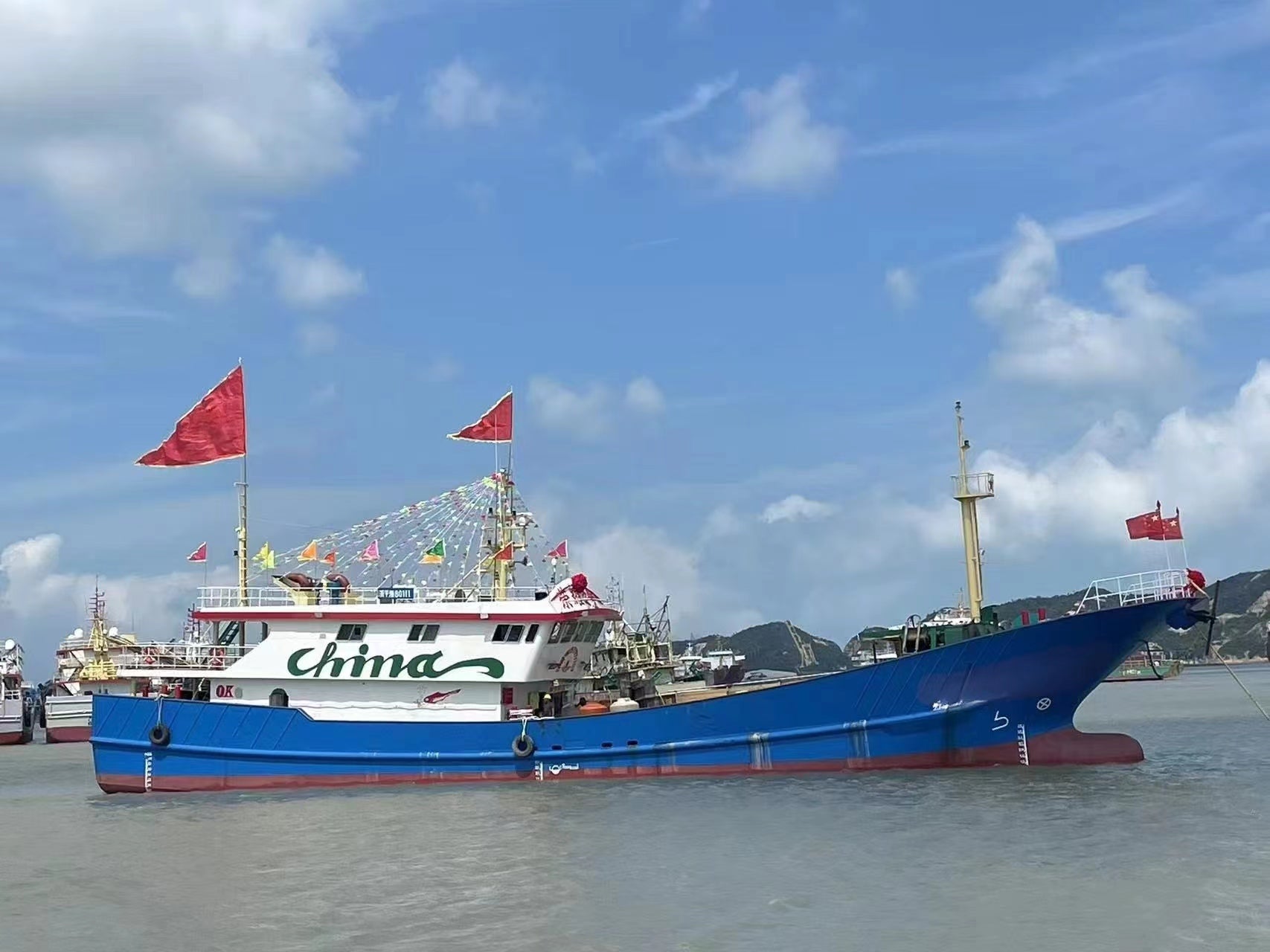

Total length: 43.00 m Ship length: 36.37 m, Molded width: 6.40 m Molded depth: 3.15 m, Design draft: 2.50 m Gross tonnage: 255, Navigation area: Offshore speed: 12.5 knots, Host model: Weichai CW6200ZC 404, quantity: 1, rated power: 220kw; Gearbox model: Forward HC1200, speed ratio 4.06:1; Auxiliary engine model: 495ZCD, quantity: 2, rated power: 36kw. Generator model: STC2 30H, quantity: 2, rated power: 30kw. Remarks:1. fishing nets and fishing boxes are not included. 2. Optional refrigerated compartment

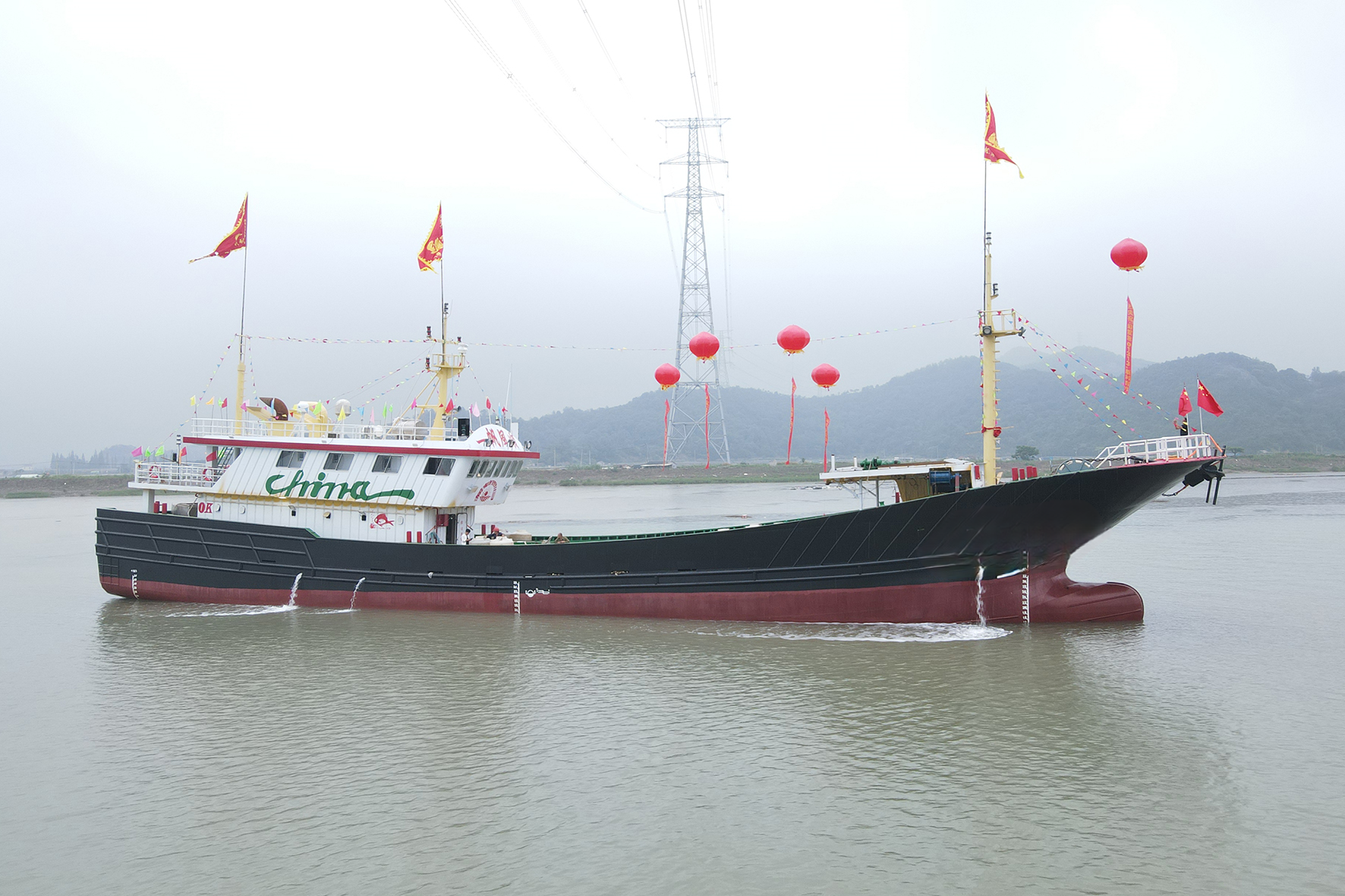

Total length: 36.00 m           Ship length : 30.86 m, Molded width: 5.80 m          Molded depth: 2.70 m, Design draft: 2.10 m            Gross tonnage: 163, Navigation area: Offshore    speed: 11.5 knots, Host model: Weichai X6170ZC197-1, quantity: 1, rated power: 145kw; Gearbox model: Forward HCD400A, speed ratio 5:1; Auxiliary engine model: 4100CD, quantity: 1, rated power: 30.1kw. Generator model: STC2-20H, quantity: 1, rated power: 20kw. Remarks: fishing nets and fishing boxes are not included. 2.Optional refrigerated compartment

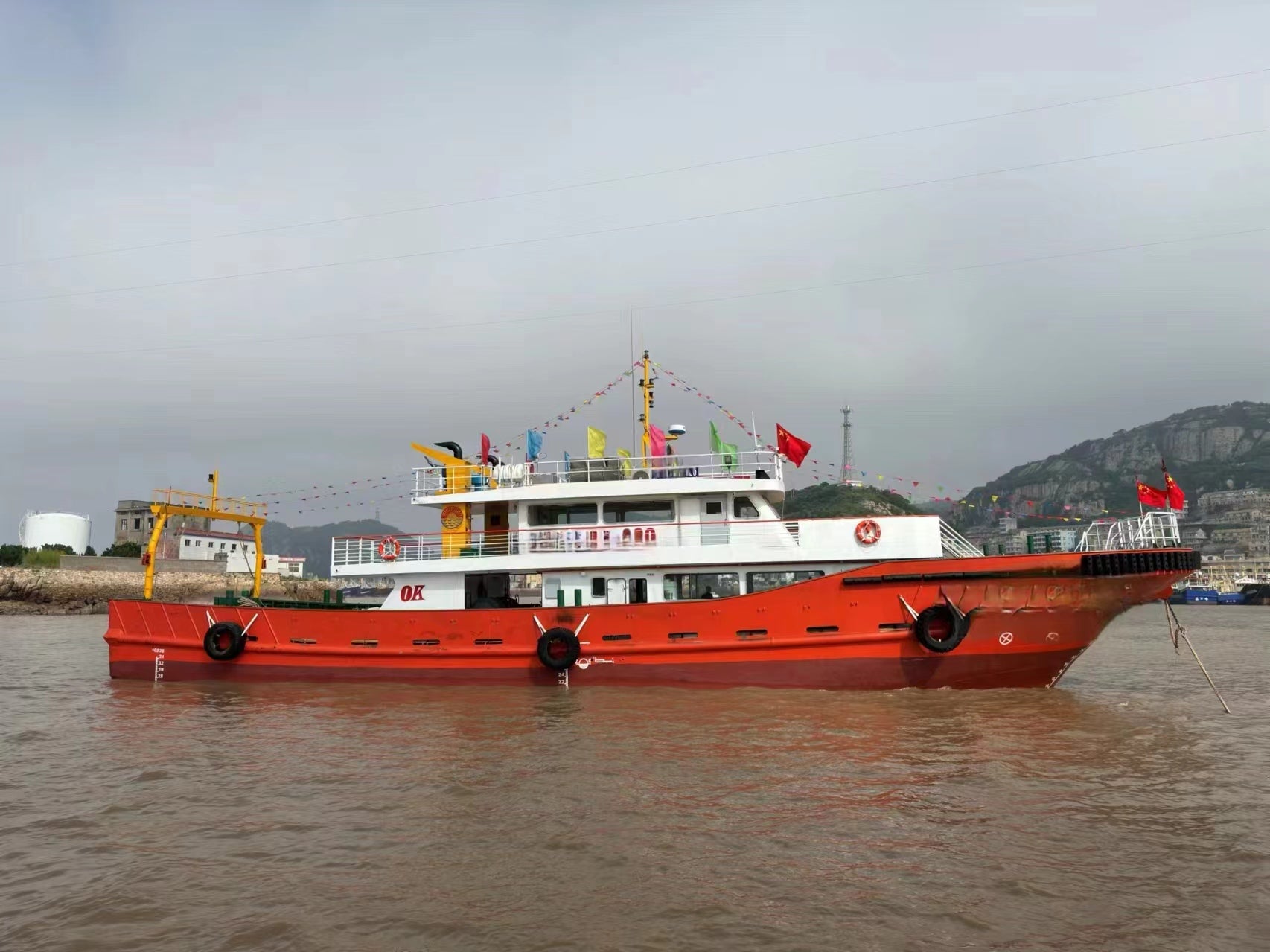

Total length: 34.10 m       Ship length: 29.50 m, Molded width: 6.60 m      Molded depth: 3.30 m, Design draft: 2.70 m        Gross tonnage: 191, Navigation area: Coastal  speed: 10.2, Host model: Weichai X6170ZC600-2, quantity: 1, rated power: 441kw; Gearbox model: Forward HCD600A, speed ratio 5.44:1; Auxiliary engine model: 495ZCD, quantity: 2, rated power: 36.0kw. Generator model: STC-30-4-H, quantity: 2, rated power: 30kw. Remarks: fishing nets and fishing boxes are not included. 2.Optional refrigerated compartment

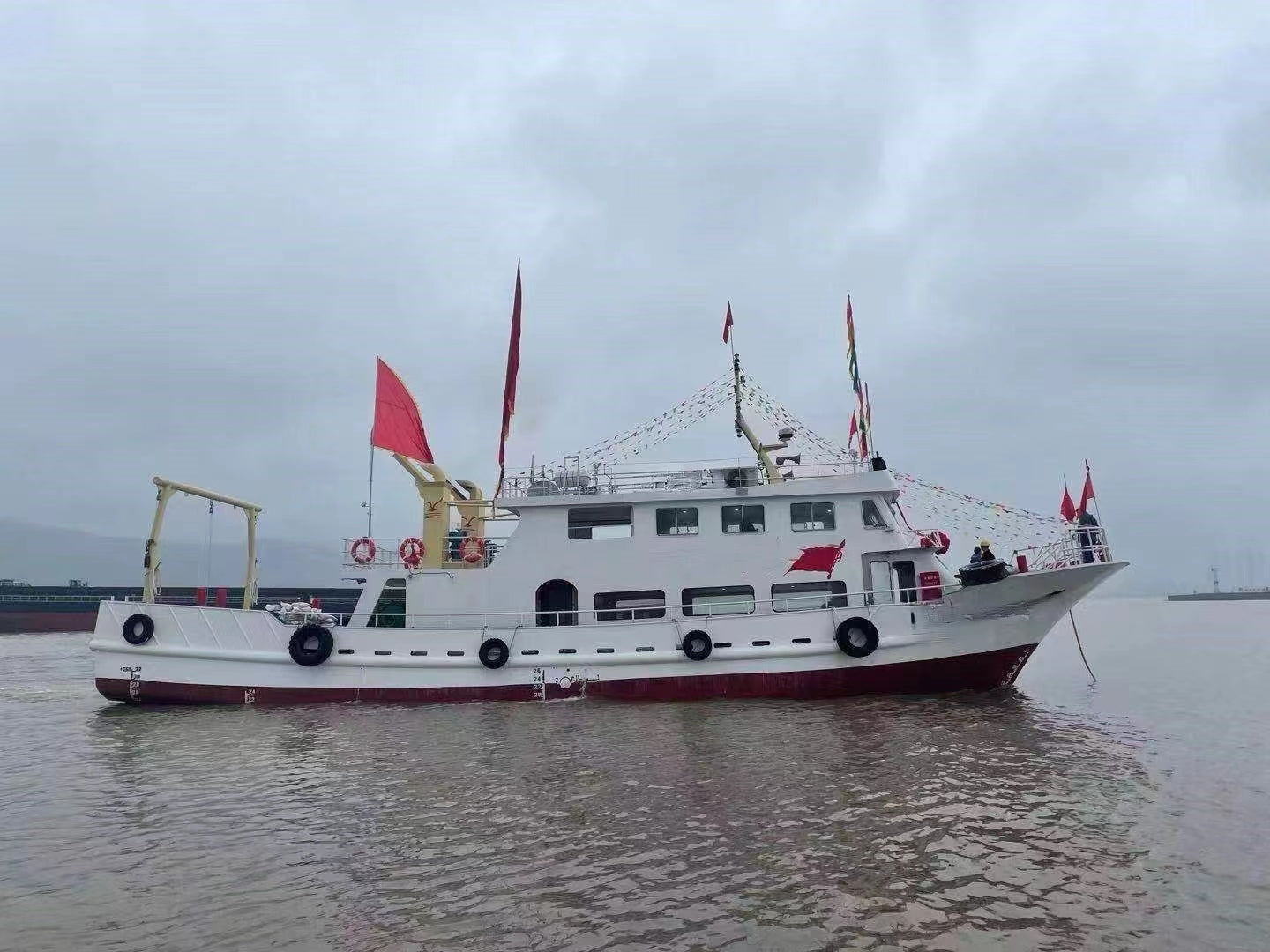

Total length: 28.00 m          Ship length : 24.32 m, Molded width: 6.00 m         Molded depth: 3.00 m, Design draft: 2.30 m           Gross tonnage: 130, Navigation area: Coastal    speed: 10.0 knots, Host model: Weichai X6170ZC450-1, quantity: 1, rated power: 330kw; Gearbox model: Forward HCD600A, speed ratio 5.44:1; Auxiliary engine model: 495ZCD, quantity: 2, rated power: 36.0kw. Generator model: T2X225S-4-H, quantity: 2, rated power: 30kw. Remarks: fishing nets and fishing boxes are not included. 2.Optional refrigerated compartment
